Prefabricated Hydraulic Canal Brick Machine Well Pipe Brick Machinery
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | TONTEN |
| Model numarası: | TT-WR |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 TAKIM |
|---|---|
| Fiyat: | Anlaşılabilir |
| Ambalaj bilgileri: | ahşap kutu ambalajı |
| Teslim süresi: | 15 gün |
| Ödeme koşulları: | T/T |
| Yetenek temini: | 1-2 set yaklaşık 15 gün |
|
Detay Bilgi |
|||
| Yöntem: | Hidrolik basınç | Kalıplama döngüsü: | 60'lar |
|---|---|---|---|
| Kavisli Tuğla Boyutu: | 225-112,5-60/80mm | Otomatik Sınıflandırma: | Yarı otomatik |
| Poeratör sayısı: | 1-2 işçi | Hammadde kullanma: | kum, taş, çimento, uçucu kül |
| Ambalaj Ağırlığı: | 1300kg | Titreşim motor gücü: | 1,5KW × 4+2,2KW |
Ürün Açıklaması

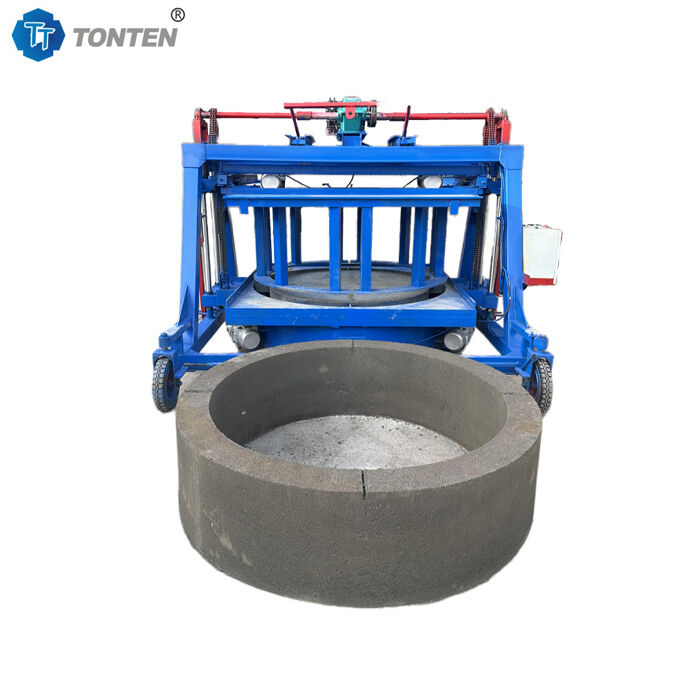

Prefabricated Hydraulic Canal Brick Machine Well Pipe Brick Machinery
The well ring machine is a specialized equipment usedfor manufacturing concrete well rings and is widely applied in municipal engineering, drainage systems, roadconstruction and other fields. This mobile prefabricated hydraulic canal brick machine is specialized in producing concrete canal bricks for water conservancy and irrigation projects. It is designed to solve the problems of traditional on-site construction (long cycle, high cost, poor durability) and can flexibly produce various canal brick types to adapt to different terrain and water flow requirements.
Using raw materials such as sand, stones, cement, a large amount of fly ash, slag, steel slag, coal gangue, ceramic particles, perlite, distiller's grains, gypsum powder, feed and other industrial waste can be added.
Prefabricated Hydraulic Canal Brick Machine Working Principle
The machine uses vertical vibration + hydraulic pressing technology. The mixed concrete is poured into the canal brick mold (U-type, V-type, etc.). The vertical vibrator generates high-frequency vibration to make the concrete fully compact, and the hydraulic cylinder applies downward pressure to shape the brick with clear edges and stable structure. The whole process is controlled by an intelligent system, and the demolded brick can be directly stacked after short curing.
Prefabricated Hydraulic Canal Brick Machine Main Parameters
| Item |
Parameters |
| Molding cycle | 60s |
| Equipped power | 8.2kw |
| Machine weight | 1200kg |
| Voltage | 220-380V |
| Class production |
Round Shaded Well Tiles (1-1.5 meters)
Square Shaded Well Tile (1-1.5 meters)
U-shaped gutter bricks (two at a time)
V-shaped gutter bricks (two at a time)
|
Prefabricated Hydraulic Canal Brick Machine More Detailed Information
Prefabricated Hydraulic Canal Brick Machine Key Features
①Versatile Brick Shapes: Interchangeable molds enable production of U-type canal bricks (width 200-800mm, height 150-500mm), V-type canal bricks (opening width 300-1000mm), trapezoidal canal bricks, and custom-shaped canal bricks.
②Mobile & Flexible: Machine with traction hook, suitable for operation in remote rural areas or mountainous water conservancy projects.
③Hydraulic Drive: High-pressure hydraulic system ensures uniform brick density and high forming rate.
④Easy Operation: Simple operation required.
Prefabricated Hydraulic Canal Brick Machine Applications
Agricultural Irrigation: Construction of irrigation canals, drainage ditches, and water conveyance channels for farms, orchards, and farmland.
Water Conservancy Projects: Lining of small and medium-sized reservoirs, rivers, and flood control channels to prevent soil erosion and water leakage.
Landscape & Ecological Projects: Construction of ecological canals in parks, residential areas, and wetland protection zones.
